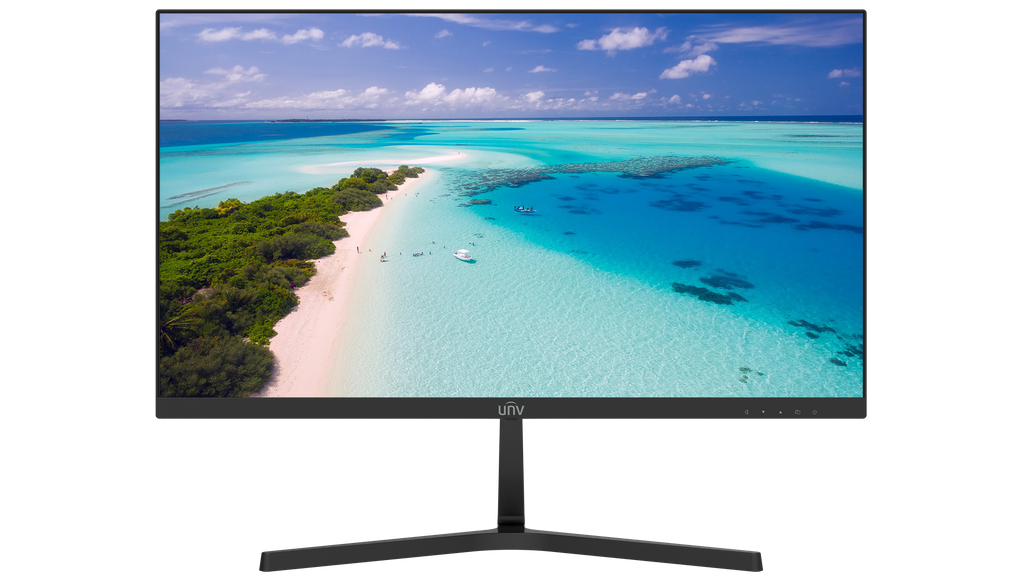

UNV 22 Inches Surveillance Monitor

Model	MW‑LC22‑E
Panel
Backlight	LED
Panel Size	22"
Pixel Pitch (H x V) (mm)	0.24 x 0.24
Resolution	1920 × 1080
Color Support	16.7 M
Brightness (cd/m²)	250
Contrast Ratio	3000:1
Refresh Rate	100 Hz
Response Time (ms)	5
Viewing Angle (H/V)	Horizontal 178°, Vertical 178°
Display Size (mm)	486.1 x 265.5
Operation Hour	18/7
Bezel Width	3.3mm (top/left/right), 15.2 mm (bottom)
Color Gamut	72% NTSC
LCD Technology/Panel Type	VA
Surface Treatment	Haze 25%, 3H
Interface
Video Input	1 x HDMI(1920 x 1080@100 HZ), 1 x VGA(1920 x 1080@60 HZ)
VESA
VESA (mm)	75 x 75
Wall‑mounted Thread	4‑M4 Threaded Hole, 8mm Deep Thread
OSD
Multi‑Language	Chinese, English, German, French, Italian, Spanish, Portuguese, Turkish, Polish, Dutch, Japanese, Korean
General
Input Voltage	DC 12 V, 2 A
Typical Power Consumption (W)	≤22
Standby Power Consumption (W)	≤0.5
Product Dimensions (W x H x D) (mm)	492.70 x 284.00 x 41.20 (Without Pedestal) 492.70 x 379.40 x 168.60 (With Pedestal)
Package Dimensions (W x H x D) (mm)	598 x 366 x 99
Weight (Kg)	Net Weight: 2.18 Gross Weight: 3.12
Operating Temperature	0°C ~ 40°C
Operating Humidity	10% ~ 85% (No Condensation)
Storage Temperature	‑20°C ~ 60°C
Storage Humidity	5% ~ 90% (No Condensation)
Standard	1 x HDMI Cable, 1 x Quick Guide, 1 x Pedestal, 1 x Adapter
Material	Plastic
Lifetime (h)	30000

3,140.00 Rs (Tax excluded)

Chose your warehouse

15 in Stock

Phoenix

4 in Stock

Add to cart

Add to wishlist

Terms and Conditions
Non-contractual images
Errors and Omissions Excepted
Inovus accept no liability for correctness of product description on our partner portal. Partners are advised to check official datasheets before placing order.

Internal Reference: MW-LC22-E
Tax String: (= 1.15 Rs Incl. Taxes)
