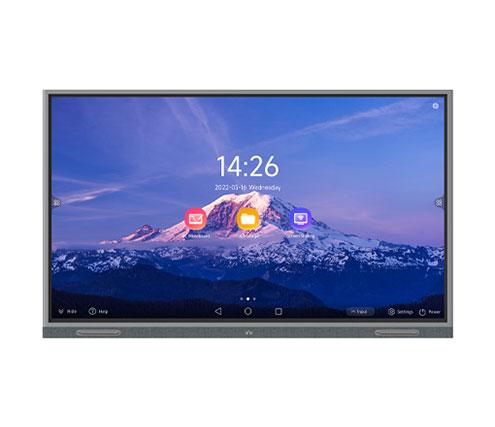

UNV 86‘’ Smart Interactive Display

Model	MW3586‑U‑E
Panel
Backlight	DLED backlight
Panel Size	86"
Resolution	3840 × 2160
Brightness (cd/m²)	350
Contrast Ratio	1200 : 1
Response Time (ms)	8
Color Support	1.07B
Viewing Angle (H/V)	178°/178°
Refresh rate (Hz)	60
Color gamut	72%
Lifespan	50000H
Surface Hardness	9H (7 on the Mohs scale)
Haze Value	25%
Display Size (mm)	1895.04 x 1065.96
Pixel Pitch (H × V) (mm)	0.49 x 0.49
Touch
Touch Control	Infrared touch screen, 20‑point multi‑touch at most
Recognizable Object	5 points 2mm
Touch Precision (mm)	±1
Glass	4mm tempered glass, level 7 on Mohs hardness scale, anti‑glare
Touch Response Time (ms)	≤10
Touchscreen Input	Opaque objects (e.g. finger, pen, etc.)
Touch technology	Infrared touch
System
CPU	RK3588: 4‑core A76 (2.4G) + 4‑core A55 (1.8G)
CPU Frequency	2.4 GHz
RAM/ROM	DDR4: 8GB eMMC: 64GB
Operation System	Android 13.0
Interface
Video Input	3 x HDMI IN (4K@60)
Video Output	1 x HDMI OUT (4K@60)
Audio Input	1 x AUDIO IN
Audio Output	1 x AUDIO OUT
Other Interfaces	1 x RS232, 3 x USB 3.0, 1 x USB Type C, 1 x USB Type B
Network	2 x RJ 45, 10M/100M/1000M adaptive Ethernet Interfaces
Audio
Frequency Domain	80 Hz ～ 20k Hz
Speaker	Left channel 17W: 1 x treble (8Ω 5W) + 2 x bass (4Ω 6W) Right channel 17W: 1 x treble (8Ω 5W) + 2 x bass (4Ω 6W)
Wi‑Fi
Wi‑Fi Configuration	Wi‑Fi6 + Wi‑Fi5 dual‑module, supports 5G/2.4G
Wi‑Fi Performance	30m² coverage, 20m transmission distance in open space
Bluetooth
Bluetooth Version	5.2
Bluetooth Performance	10m transmission distance in open space
OSD
Multi‑Language	24 (Simplified Chinese, Traditional Chinese, English, Japanese, Arabic, French, Spanish, Portuguese, German, Italian, Dutch, Polish, Korean, Catalan, Galician, Vietnamese, Bulgarian, Kazakh, Russian, Ukrainian, Thai, Uzbek, Hungarian, Croatian)
VESA
Wall Mount Hole (mm)	800 x 400
Wall Mount Screw	4‑M8 screw hole
General
Power Supply	AC 100 to 240 V, 50/60 Hz
Overall Power Consumption (W)	≤365 (on without OPS)
Standby Power Consumption (W)	<0.5
Product Dimensions (W × H × D) (mm)	1967 x 1173 x 89
Package Dimensions (W × H × D) (mm)	2117 x 1336 x 247
Operating Temperature	0 to 50°C
Weight (kg)	Net weight: 68.0 Gross weight: 79.2
Operating Humidity	10% to 90% (non‑condensing)
Storage Temperature	‑20 to 60°C
Storage Humidity	0% to 95% (non‑condensing)
Accessories Included	1 x power cord, 2 x touch pen, 1 x quick guide
Certification
Certification	CE‑EMC,CE‑RED,CB/LVD,FCC,FCC‑ID,IC VOC,IC ID
