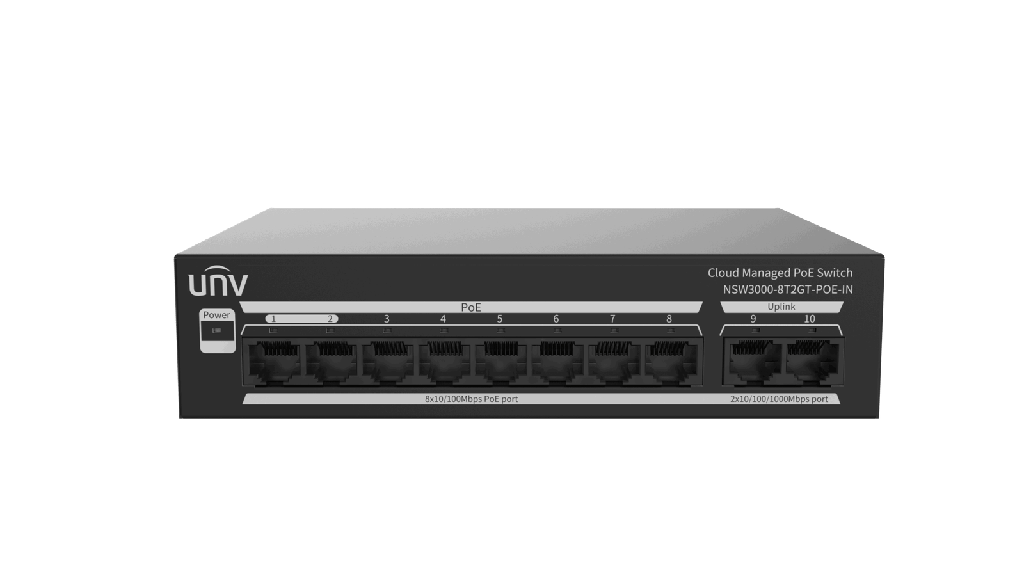

UNV Cloud Managed Ethernet Switch(PoE)

UNV Cloud Managed Ethernet Switch(PoE)

Cloud Managed Ethernet Switch(PoE)• Supports unified configuration, management, and search on the software, convenient for rapid operation and maintenance of multiple devices; supports automatically discovering the connected video devices and generating a network topology on the software.

• Supports Web login, and device configuration and management on the Web interface; supports visiting the cloud by scanning the QR code. Allows to view the device status and network topology in real time on the app, and remotely restart the PoE power supply.

• Supports PoE power supply and allows to view the power; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.

• Supports the extend mode for up to 250m communication range and 10Mbps auto-negotiation rate.

• Allows to report port abnormal alarms to the software for realtime monitoring.

• Supports port priority. The packets received by the priority port will be forwarded first when the switch is fully loaded and the priority port will be powered first when the PoE power supply is full.

• All metal casing, secure and reliable.

Hardware Specification
Ports Type8 x 10/100Mbps POE port (RJ45) ,
2 x Gigabit port (RJ45)
StandardsIEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity5.6 Gbps
Forwarding performance4.17Mpps
Packet Buffer2 M bit
MAC4K
Weight0.67KG
Dimensions (W×D×H)169mm*132mm*40mm
PoE StandardIEEE 802.3af, IEEE 802.3 at
Max.PoE PowerMaximum total power: 120W
Maximum PoE power for single port: 30W
PoE ModeModeA (1236), ModeB (4578)
Power SupplyAC: 100 to 240V, 50/60Hz
Max.Power130W
Prior Ports1 to 2
Cooling Fans0
Operating Humidity5% to 90% RH, noncondensing
Operating Temperature0°C to 45°C (32°F to 113°F)
IndicatorPower:
Off: Abnormal power input
Green: Normal power input
Yellow: The total PoE power is higher than 85% of the total power of the device
Link/Act:
Off: Disconnected to the port
On: Connected to the port
Blinking: Transmitting data
Software Specification
EthernetSupports full duplex, half duplex, and auto-negotiation working modes
Supports enabling/disabling ports
Supports port auto-negotiation rate
Supports port priority flow control.
Supports port flow statistics
Supports a link aggregation group (consist of two uplink ports)
VLANSupports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094
MACSupport (up to 4K).
Supports clearing the dynamic MAC address
POEAllows to view PoE status and power.
Allows to enable/disable PoE power supply.
Loop DetectionLoop Detection
QoSSupports port rate limitation.
Supports broadcast storm control.
SecuritySupports port isolation (only for the downlink ports).
Supports locking login IP address, up to 64 addresses can be locked
MaintenanceSupports N:1 port mirroring.
Supports unified software configuration, management, and search.
Supports discovering the connected video devices and generating a network topology on the software.
Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software.
SystemAllows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc.
Allows to edit and manage the IP address and device name.
Supports single-user management, user authentication, and password modification.
Allows to view other switches information on the same network, up to 32 switches.
Allows to view the connected video devices information, up to 64 devices .
Compliance
NDAA CompliantSupport
2,030.00 Rs 2,030.00 Rs (Tax excluded)
3,900.00 Rs (Tax excluded)

  • Brand
  • Brand
Add to cart
Buy now
Add to wishlist
Terms and Conditions
Non-contractual images
Errors and Omissions Excepted
Inovus accept no liability for correctness of product description on our partner portal. Partners are advised to check official datasheets before placing order.
Contact Us

Internal Reference: NSW3000-8T2GT-POE-IN

Specifications

Brand UNV, UNV
